This Disc Brake Road Bicycle Wheelset is crafted for high performance and reliability. Featuring tubeless-ready rims, it enhances ride quality by allowing lower tire pressures, reducing rolling resistance, and improving grip. The hubs utilize a center lock system with a 6-pawl structure, providing quick, responsive engagement and efficient power transfer. Paired with Pillar 1423 spokes, this wheelset offers excellent strength, aerodynamics, and durability, making it ideal for cyclists looking for speed and control across various conditions.

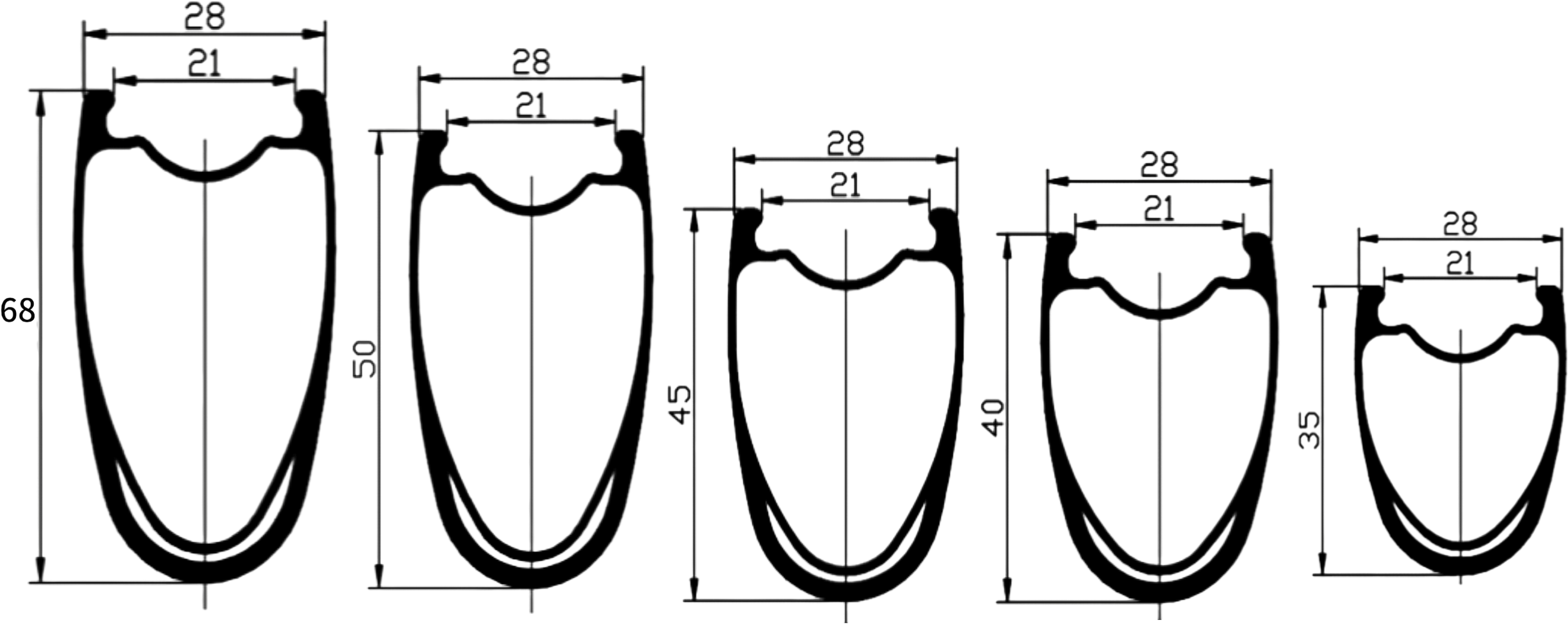

Rims Options
- Internal width 21mm, external width 28mm.
- Rim profile: 35mm | 40mm |45mm| 50mm | 68mm.
- Compatible with 28–32c tires,offering better grip, comfort, and rolling efficiency.
Hubs
- Axle System: 12×100/142mm Thru Axle
- Freehub Type: 6 Pawl
- Shimano HG 11/12s, SRAM XDR 12s
Spokes & Nipples
- Spokes: Pillar Aero 1423.
- Nipples: Aluminum spoke nipples.
- 20 front | 24 rear (2 cross both sides).
Model
Rim
Tire Type
Hub
Spoke
Front Count
Rear Count
Weight
(+/-3%)
WD2835-RD01-STL
35mm deep
Clincher/Tubeless
RD01-6 pawl
Pillar 1423
24H
24H
1477g
WD2840-RD01-STL
40mm deep
Clincher/Tubeless
RD01-6 pawl
Pillar 1423
24H
24H
1517g
WD2845-RD01-STL
45mm deep
Clincher/Tubeless
RD01-6 pawl
Pillar 1423
24H
24H
1557g
WD2850-RD01-STL
50mm deep
Clincher/Tubeless
RD01-6 pawl
Pillar 1423
24H
24H
1597g
WD2868-RD01-STL
68mm deep
Clincher/Tubeless
RD01-6 pawl
Pillar 1423
24H
24H
1757g
RIMS
The 700C carbon fiber rims, designed for tubeless tires, offer a lightweight yet incredibly strong performance. Engineered for durability and speed, these rims enhance aerodynamics while reducing rolling resistance. Carbon fiber provides a stiff, responsive ride, ideal for competitive cyclists and long-distance riders. The tubeless design improves traction and eliminates the need for inner tubes, lowering the risk of punctures. Perfect for road and gravel bikes, they ensure a smooth, fast, and efficient ride across varied terrains.
HUB
This hub features six pawls that engage quickly, ensuring instant power transfer for an efficient, responsive ride. The center-lock mechanism enhances stability, and reduces the risk of loosening during aggressive riding. The straight-pull design minimizes weight while maximizing strength, providing a reliable and aerodynamic solution for road and mountain bikes.
SPOKES
Pillar 1423 spokes are high-performance, lightweight spokes designed for strength and aerodynamics. Made from premium materials, they offer excellent tension retention and durability. Ideal for road, gravel, and mountain bikes, these spokes ensure a responsive.
